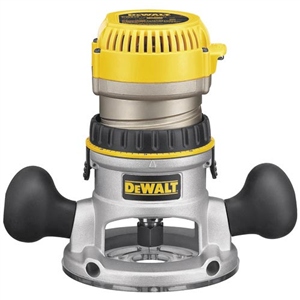

DeWalt DW616R Fixed Base Router 1-3/4 HP
|
Part Number: DW616R
Manufacturer: DeWALT
Manufacturer Part No: DW616R
|
DeWalt DW616R Fixed Base Router 1-3/4 HP
Factory Reconditioned
Features:
1-3/4 HP (maximum motor HP), 11.0 Amp motor provides the power to rout smoothly through the toughest hardwoods
Micro-fine depth adjustment ring provides precise depth adjustments in 1/64" increments and adjusts vertically for a constant switch/cordset location
Adjustable, tool-free steel motor cam lock makes depth adjustment and base changes quick and solid-locking
Quick release motor latches for fast and easy motor pack removal for bit and base changes
Detachable cordset offers cordset serviceability and removes the need for a "shorty" cord motor pack
Sub-base concentricity gauge included to ensure bit concentricity for best-in-class accuracy
Clear, LEXAN sub-base provides enhanced base durability, bit visibility, and accepts standard template guide bushings
Rubber overmolded handles and low center of gravity design provide best-in-class comfort, balance, and control
Dust-Sealed Switch protects against dust ingestion for longer switch life
Heavy-duty, precision machined, die-cast aluminum base and motor housing for durability and low tool weight
Nickel plated motor housing for a smooth, long-lasting depth adjustment
Right or left switch and cordset location provides the ability to have the switch in your right or left hand
Flat top for easy bit and depth changes
Self-releasing, long, eight slotted collets for better bit retention and elimination of frozen bits
Specifications:
| Amps |
11.0Amps
|
| HP |
1-3/4HP
|
| No Load Speed |
24,500rpm
|
| Collet Diameter |
1/2", 1/4"
|
| Plunge Stroke |
N/A"
|
| Depth Stop |
Micro-fine depth adjustment ring
|
| Base Dimension |
6"
|
| Spindle Lock |
No
|
| Tool Weight |
7.1lbs
|
Includes:
DW616M motor pack
DW6184 fixed base
1/4" and 1/2" collets
Sub-base concentricity gauge
2 wrenches
|
