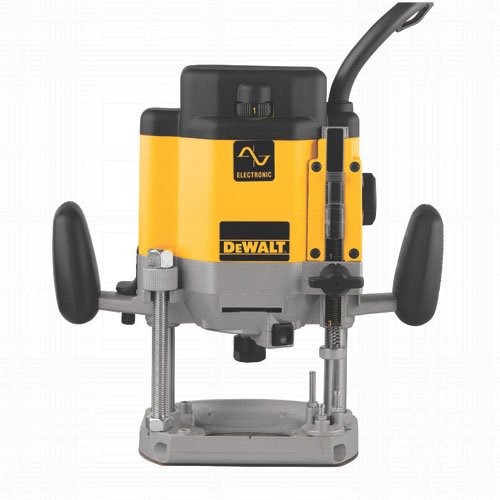

DeWalt DW625 Plunge Router 3 HP
|
Part Number: DW625
Manufacturer: DeWALT
Manufacturer Part No: DW625
|
DeWalt DW625 Plunge Router 3 HP
Features:
15.0 Amp motor uses state-of-the-art circuitry for soft starts and smooth operation
Full wave electronic variable speed motor runs at 8,000-22,000 rpm with constant speed under load to ensure a quality finish in all materials
Rack and pinion depth adjuster, magnified scale and micro-fine bit depth adjuster provides fast and accurate depth settings
Phosphorous bronze bushings provide a smooth and accurate plunge
Spindle lock button allows for single-wrench bit changes
Dust Extraction Adapter for cleaner work sites
1/4" - 1/2" collet capacity for greater versatility
Guide Bushing adapter plate accepts standard guide bushings for template work
One-piece motor shaft and spindle ensures perpendicularity and accuracy
Specifications:
| Amps |
15.0Amps
|
| HP |
3HP
|
| No Load Speed |
8,000-22,000rpm
|
| Collet Diameter |
1/2", 1/4"
|
| Plunge Stroke |
2-7/16"
|
| Depth Stop |
3 Stage Turret Stop
|
| Base Dimension |
5-5/8 x 6-11/16"
|
| Spindle Lock |
Yes
|
| Tool Weight |
11.2lbs
|
Includes:
1/4" collet
1/2" collet
Dust Extraction Adapter
Template guide bushing adapter
Wrench |
