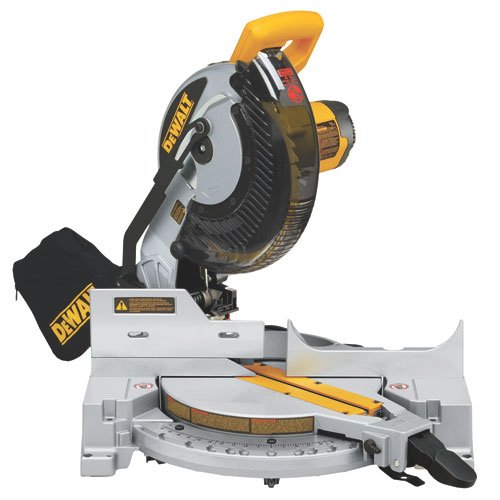

DeWalt DW713 Miter Saw Single-Bevel Compound 10"
|
Part Number: DW713
Manufacturer: DeWALT
Manufacturer Part No: DW713
|
DeWalt DW713 Single-Bevel Compound Miter Saw 10"
Features:
15 Amp, 5,000 rpm motor delivers extended power and durability
Stainless steel detent plate with 11 positive stops provides repeatable accuracy and jobsite duability
Tall sliding fences support crown molding vertically 4-1/2" and easily slides out of the way for bevel cuts
Machined base fence support maintains fence perpendicularity with blade for cutting accuracy
Cam miter lock for quick and accurate miter table positioning
Miter detent override for fine adjustment and precise miter angles
0-50° left and right miter capacity for greater versatility
Bevels 3°-48° for increased cut capacity
Lightweight (35lbs), built-in carrying handle for increased portability
Laser compatible, designed for use with the DWS7085 LED worklight or DW7187 DEWALT® adjustable miter saw laser system
Specifications:
|
Blade Diameter |
10"
|
|
Amps |
15Amps
|
|
No Load Speed |
5000rpm
|
|
Arbor Size |
5/8"
|
|
Vertical Capacity: Baseboard Against Fence |
3-1/2"
|
|
Vertical Capacity: Crown Molding Vertically Nested |
4-1/2"
|
|
Horizontal Capacity: Baseboard Lying Flat |
6"
|
|
Horizontal Capacity: Crown Molding Lying Flat |
5-1/4"
|
|
45° Bevel Cut Capacity (dimensional lumber) |
2x6
|
|
90° Cross-Cut Capacity (dimensional lumber) |
4x4"
|
|
90° Cross-Cut Capacity (Max Width) |
2x6 dimensional lumber
|
|
45° Miter Cut Capacity (Max Height) |
2x4
|
|
45° Miter Cut Capacity (Max Width) |
2x4
|
|
Tool Weight |
35lbs
|
