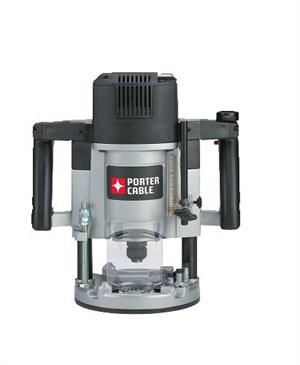

Porter Cable 7538 Speedmatic Plunge Router 3-1/4 HP

<< Previous in Plunge Routers Next in Plunge Routers >>

Your Price: $346.00
Part Number: 7538
Manufacturer: Porter Cable
Manufacturer Part No: 7538
Availability: Available for Order
Porter Cable 7538 Speedmatic 3-1/4 HP Plunge Router

Features:
  • 15 Amp motor provides the power and durability necessary for the toughest applications
  • Single speed 21,000 rpm motor with soft-start feature to reduce torque at start-up
  • Auto-release collet system allows for easy bit removal after use
  • Depth rod with 6-position adjustable turret enables stepped or repeated plunge cuts
  • 3" Plunge Range
  • Precision machined aluminum motor housing and base
  • Dust-sealed switch and sealed ball bearing construction enhance tool durability
  • Handle incorporates trigger switch with lock-on feature
  • Large handles enhance user control

Specifications:

  • Power: 120 VAC, 25-60 HZ
  • Horsepower: 3-1/4 HP
  • Amps: 15 Amps
  • No Load Speed: 21,000 with soft-start rpm
  • Collets: 1/2"
  • Base: 7" Round
  • Switch: Trigger
  • Length: 11.5"
  • Width: 7"
  • Height: 13.13"
  • Weight: 17.25 lbs

Includes:

  • Standard Equipment: The 7538 includes Router Motor, Plunge Base, 1/2" collet, Collet wrench, Operating manual.

Parts:

If you need parts email us the parts you need. mailto:info@ToolsandMore.us

Parts & Diagram
