Proxxon 37080 Hot Wire Cutter Thermocut
 Proxxon 37080 Hot Wire Cutter Thermocut Proxxon 37080 Hot Wire Cutter Thermocut Proxxon 37080 Hot Wire Cutter Thermocut |
|
Your Price: Back ordered until end of June--will not ship until then
Part Number: 37-080
Manufacturer: Proxxon
Manufacturer Part No: 37 080
|
Proxxon 37080 Hot Wire Cutter Thermocut
Ideal for architects, designers, decorators, artists and teachers. For building architectural models, prototypes as well as classic model railroad, plane and boat items.

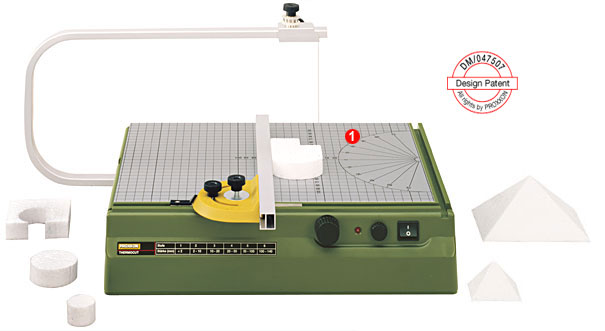

The large table with 15 11/32" x 11" (390 x 280mm) ensures smooth and easy movement of the work piece. The printed grid and protractor assist with division and cutting. The solid aluminum overarm has a 13 3/4" (350mm) throat and offers 5 1/2" (140mm) in height. The holder and wire coil (one spool of wire 98ft., 0.008" diameter is included) may be shifted and adjusted along the overarm to enable miter cutting. An LED indicates operation and thus reminds you not to touch the hot wire to prevent burnt fingers (the wire heats to maximum in less than 1 second).
Note:
The correct temperature, being material and thickness dependent, is learn t from experience. Profiles are ideally cut at lower temperatures and while applying less cutting force.
Technical data:
|
Cutting wire temperature
|
210 - 390 °F (100 - 200 °C)
|
|
Transformer secondary max.
|
10V at 1.0A
|
|
Volts
|
110 - 120V AC, 60 Hz
|
|
Weight
|
6.6 lb
|
|
|
|
|
