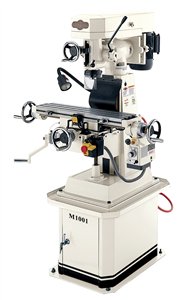

Shop Fox M1001 Vertical Milling Machine
|
List Price: $3,567.00
Your Price: $2,843.33
Part Number: M1001
Manufacturer: Shop Fox
Manufacturer Part No: M1001
Freight Cost will be added to order. We will email with the Freight Cost.
|
| Shop Fox M1001 Vertical Milling Machine
|
Email or Call for Special Pricing.
352-754-9335
info@ToolsandMore.us
This knee mill is great for the small shop that wants a compact unit! It features a 1-1/2 HP motor with 9 speeds ranging from 240 to 2760 RPM. A variable speed power feed with rapid override efficiently moves the 6-1/8" x 26" table back and forth along its 15-7/8" travel. Both the head and column rotate 45° in both directions. A single shot lubrication system makes maintenance quick and easy!
- High precision-ground vertical and cross ways
- Class 7 spindle bearings
- Milling head micro-feed
- Head tilts to 45° both ways. 90° rotation on horizontal surface
- Built-in work light
- Motor size: 1-1/2 HP, 110V, single-phase, TEFC
- Spindle taper: R-8
- Spindle travel: 3"
- Max. distance spindle to table: 12-1/2"
- T-Slots: 3 on 1-9/16" centers, 3/8" studs
- Table size: 6-1/8" x 26"
- Table travel (longitudinal): 15-5/8"
- Table travel (cross): 6"
- Max. drilling capacity for cast iron: 1"
- Max. drilling capacity for steel: 3/4"
- Head tilt: 45° R & L
- Ram swiveling angle: 45° R & L
- Number of speeds: 9
- Range of speeds: 240-2760 RPM
- Overall dimensions: 66-5/8" H x 41" D x 45-1/2" W
(Shipping cost is to a business address, with loading dock / Fork Lift or picked-up at freight terminal only. Freight companies Do Not consider businesses run from a residential/farm address as a business. Residential fees will apply.).
SHIPPING COST: Email or Call for Shipping Cost.
Additional InformationOwners Manual |
