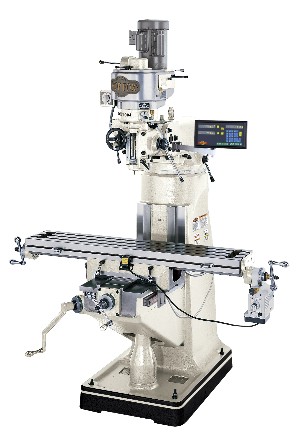

Shop Fox M1004 Vertical Milling Machine 9' x 49'
|
List Price: $7,492.00
Your Price: $5,993.33
Part Number: M1004
Manufacturer: Shop Fox
Manufacturer Part No: M1004
Freight Cost will be added to order. We will email with the Freight Cost.
|
| Shop Fox M1004 Vertical Milling Machine
|
Email or Call for Special Pricing.
352-754-9335
info@ToolsandMore.us
Weighing in at over 2400 lbs of cast iron and hardened precision ground steel, Model M1004 has the size and stability to handle the toughest jobs. With a 2 HP motor driving 8 speeds from 78 to 2400 RPM, 3 speed quill feed with a micrometer depth stop and auto reverse, and a variable speed longitudinal power feed, this machine has the ability to do the most complex and precise jobs. This brute has both power and finesse! For added performance, the M1004 includes a 2 axis digital readout with up to 5µm resolution, machine error compensation, absolute/incremental coordinate display, arc/line of holes/angled cut functions, and 199 user defined datum points.
- One-shot pump lubrication
- Auto down feed
- Quill feeds/spindle rev.: .0019", .0035", .0058"
- Auto stop with micro adjustable stop
- R-8 spindle
- Longitudinal power feed
- Hardened and ground table surface
- Chrome plated, precision-ground quill
- Adjustable micrometer quill depth stop
- Motor: 2 HP, 110V/220V, single-phase, TEFC, prewired to 220V
- Spindle travel: 5"
- Table size: 9" x 49"
- Table travel (longitudinal): 27"
- Table travel (cross): 12"
- Max. dist. spindle to table: 18-3/4"
- Max. dist. spindle to column: 18-1/2"
- Knee travel: 16"
- Head tilt: 45° both ways
- Head swivel: 90° both ways
- T-slots: 3 on 2-1/2" centers, 1/2" studs
- Speeds: 8
- Range of speeds: 78, 98, 197, 278, 670, 850, 1700 and 2400 RPM
(Shipping cost is to a business address, with loading dock / Fork Lift or picked-up at freight terminal only. Freight companies Do Not consider businesses run from a residential/farm address as a business. Residential fees will apply.).
SHIPPING COST: Email or Call for Shipping Cost.
