Shop Fox Machinery M1018 Bench Combo Lathe Mill

<< Previous in Milling Machines Next in Milling Machines >>
16-1/2" x 19-3/16" Bench Metal Lathe / Mill
16-1/2" x 19-3/16" Bench Metal Lathe / Mill
List Price: $1,750.00
Your Price: Add to Cart to View Price
Store Pick Up ONLY
Part Number: 754001510180
Manufacturer: Shop Fox
Manufacturer Part No: M1018
Availability: In Stock
STORE PICK UP ONLY

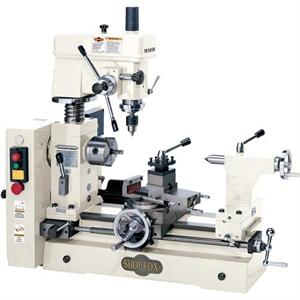

Shop Fox Machinery M1018 Bench Combo Lathe Mill

Description:

Hobby or entry-level machinists will not want to pass up this versatile machine. Great for turning, cutting threads, drilling and milling small projects, this combo lathe is packed with extra add-on like a 4-way turret tool post, 9-1/2" faceplate, 4" 3-jaw chuck, and a built-in rotating vise. Features a 16-1/2" swing over bed, 11-1/2" swing over saddle, 19-3/16" distance between centers, 3/4" spindle bore, and MT #3 tapers.

Specifications:
  • Motor size: 3/4 HP, 110V, single-phase
  • Swing over bed: 16-1/2"
  • Swing over saddle: 11-1/2"
  • Distance between centers: 19-3/16"
  • Spindle bore: 3/4"
  • Lathe spindle taper: MT #3
  • Mill/Drill spindle taper: MT #3
  • Tailstock taper: MT #3
  • Draw bar: 3/8"-16 TPI
  • Tailstock barrel travel: 1-1/2"
  • Cross slide travel: 4-1/2"
  • Number of Mill/Drill speeds: 14
  • Mill/Drill speeds: 117, 150, 220, 290, 276, 345, 360, 440, 450, 575, 640, 836, 1000, 1300 RPM
  • Number of Lathe speeds: 7
  • Lathe speeds: 160, 300, 375, 470, 600, 870, 1360 RPM
  • Thread range (inches): 27 @ 8 - 120 TPI
  • Thread range (metric): 18 @ .2 - 3.0 mm
  • T-slots in cross slide
  • Cuts inch and metric threads
  • Turret tool post
  • Tailstock offsets 1/2"
  • Built-in vise
  • 4" 3-jaw chuck
  • 1/2" drill chuck
  • MT #3 chuck arbor
  • 2 dead centers
  • Change gears
  • 5" back plate
  • 9-1/2" faceplate

STORE PICK UP ONLY-- NO SHIPPING NO DELIVERY



Email or Call for Freight Cost.
352-754-9335

At this time, Tools & More  is not authorized to sell Shop Fox equipment to customers in the following states - AK, CA, CT, HI, LA, MA, MD, MS, RI and TN.

(Shipping cost is to a business or residential address, with loading dock / Fork Lift or picked-up at freight terminal only. Freight is only curb side delivery, You must have way to remove from truck. There are fees for Lift Gate Service. Freight companies may have other fees that may apply ie; lift gate, limited access etc. See Shipping Policies for more information)
