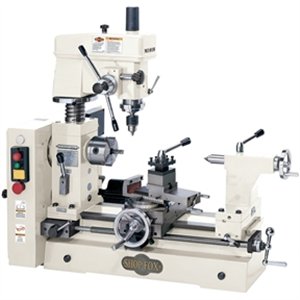

Hobby or entry-level machinists will not want to pass up this versatile machine. Great for turning, cutting threads, drilling and milling small projects, this combo lathe is packed with extra add-ons like a 4-way turret tool post, 9-1/2" faceplate, 4" 3-jaw chuck, and a built-in rotating vise. Features a 16-1/2" swing over bed, 11-1/2" swing over saddle, 19-3/16" distance between centers, 3/4" spindle bore, and MT #3 tapers.
*T-*slots in cross slide
*Cuts inch and metric threads
*Turret tool post
*Tailstock offsets 1/2"
*Built-in vise
*4" 3-jaw chuck
*1/2" drill chuck
*MT #3 chuck arbor
*2 dead centers
*Change gears
*5" backplate
*9-1/2" faceplate
*Motor size: 3/4 HP, 110V, single-phase
*Swing over bed: 16-1/2"
*Swing over saddle: 11-1/2"
*Distance between centers: 19-3/16"
*Spindle bore: 3/4"
*Lathe spindle taper: MT #3
*Mill/Drill spindle taper: MT #3
*Tailstock taper: MT #3
*Draw bar: 3/8"-16 TPI
*Tailstock barrel travel: 1-1/2"
*Cross slide travel: 4-1/2"
*Number of Mill/Drill speeds: 14
*Mill/Drill speeds: 117, 150, 220, 290, 276, 345, 360, 440, 450, 575, 640, 836, 1000, 1300 RPM
*Number of Lathe speeds: 7
*Lathe speeds: 160, 300, 375, 470, 600, 870, 1360 RPM
*Thread range (inches): 27 @ 8 - 120 TPI
*Thread range (metric): 18 @ .2 - 3.0 mm
*Approximate shipping weight: 500 lbs.
(Shipping cost is to a business address, with loading dock / Fork Lift or picked-up at freight terminal only. Freight companies Do Not consider businesses run from a residential/farm address as a business. Residential fees will apply.)
SHIPPING COST: Email or Call for Shipping Cost.
