Shop Fox M1036 Micro Milling Machine

<< Previous in Milling Machines Next in Milling Machines >>

List Price: $495.00
Your Price: $400.00
Part Number: M1036
Manufacturer: Shop Fox
Manufacturer Part No: M1036
Availability: Available for Order
Shop Fox M1036 Micro Milling Machine

Click Here for any Special Pricing.

Description:

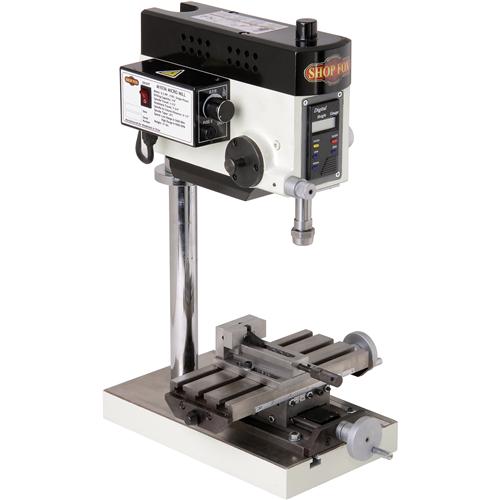

This Micro Mill is perfect for machining high precision small parts for working models. It includes a digital depth readout, compound slide table, and a micro down feed knob and variable speed control. Picture shown with optional M1038 Quick Vise, and M1037 Collet not included.

Specifications:
  • Motor: 0.2 HP, 2A, 110V, single-phase
  • Drilling capacity: 1/4"
  • Spindle taper: JT1
  • Spindle travel: 1-1/2"
  • Headstock travel: 7-3/4"
  • Spindle to column distance: 6-1/2"
  • Table travel (longitudinal): 2-3/4"
  • Table travel (cross): 5-1/2"
  • Table size: 3-1/2" X 8"
  • Column swivel: 360 degrees
  • Speeds:
  • Low range: 0-3600
  • High range: 0-500

At this time, Tools & More  is not authorized to sell Shop Fox equipment to customers in the following states - AK, CA, CT, HI, LA, MA, MD, MS, RI and TN.
