Shop Fox M1112 Gunsmith Lathe with Stand

<< Previous in Metal Turning Lathes Next in Metal Turning Lathes >>
Gunsmith Lathe with Stand - Shop Fox M1112
Gunsmith Lathe with Stand - Shop Fox M1112
List Price: $5,140.00
Your Price: $4,215.00
Part Number: 754001511125
Manufacturer: Shop Fox
Manufacturer Part No: M1112
Availability: Available for Order
Freight Cost will be added to order. We will email with the Freight Cost.

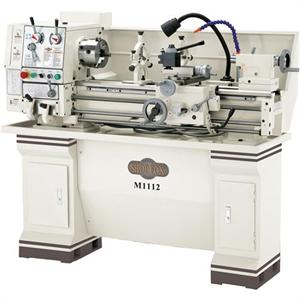

Shop Fox M1112 Gunsmith Lathe with Stand
This superb gear-head lathe is in the bull's eye with its high-tolerance bearings, D1-5 cam-lock spindle, outboard spindle bore supports, quick change gearbox, induction-hardened bed ways, and its extra fine longitudinal feed rate of 0.0011"/r and cross feed rate of 0.0004"/r. Other features include a heavy-duty vibration dampening stand, ball bearing tipped follow rest and steady rest, and a tail-stock that can be tightened with a torque wrench to maintain precision chuck-to-tailstock alignment every time the tail-stock is locked down. Even if you are not a gunsmith, you'll appreciate all the precision and features this lathe offers.

  • 2HP, 220v, Single-Phase, 1725 RPM
  • 1-5/8" Spindle Bore
  • D1-5 Cam lock Mount
  • Range of Speeds: 70, 200, 220, 270, 360, 600, 800, 1000 & 1400 RPM
  • Removable gap bed allows turnings up to 17" in diameter.
  • Cuts 4-112 Standard TPI and .2-4.5 Metric.
  • Halogen Work Light
  • Ball Bearing Steady/Follow Rests
  • Heavy Duty Stand with Extended Base
  • Cast Aluminum Gear Cover
  • Coolant System
  • Quick Change Tool Post
  • Ground Gears & High Precision Bearings
  • Hardened & Ground V-Ways
  • 6" 3-Jaw Chuck w/ 2 Sets of Jaws
  • 8" 4-Jaw Chuck w/ Reversible Jaws
  • 10" Faceplate
  • Set of 6 Change Gears
  • 1/2" Chuck w/ MT3 Arbor
  • 1364 lbs. Approximate

Email or Call for Freight Cost.

At this time, Tools & More  is not authorized to sell Shop Fox equipment to customers in the following states - AK, CA, CT, HI, LA, MA, MD, MS, RI and TN.

(Shipping cost is to a business or residential address, with loading dock / Fork Lift or picked-up at freight terminal only. Freight is only curb side delivery, You must have way to remove from truck. There are fees for Lift Gate Service. Freight companies may have other fees that may apply ie; lift gate, limited access etc. See Shipping Policies for more information)
