Shop Fox W1680 Drill Press 17"

<< Previous in Drill Presses Next in Drill Presses >>
1 HP - 17" Floor Model Drill Press
1 HP - 17" Floor Model Drill Press
List Price: $660.00
Your Price: $552.00
Part Number: W1680
Manufacturer: Shop Fox
Manufacturer Part No: W1680
Availability: Available for Order
Freight Cost will be added to order. We will email with the Freight Cost.

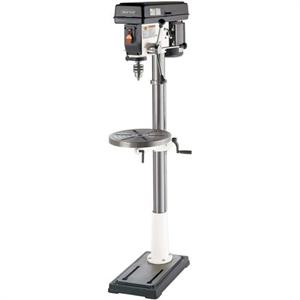

Shop Fox W1680 1 HP 17" Floor Model Drill Press

Click Here for any Special Pricing.

This solid performing drill press is perfect for the average size cabinet shop or small machine shop. With the extra horsepower aluminum finned motor, the Morse Taper #3 spindle for the larger direct mount bits and the closely spaced spindle shaft bearings you have one of the most accurate drill presses in its class. Solid cast iron construction, precision ground table, sealed ball bearings, and rubber coated quick-adjust handles provide the quality and convenience you want in a machine investment. We even added a built-in light so you can see what you're doing.

  • Motor size: 1 HP, 1,720 RPM
  • Voltage: 110V
  • Switch: Toggle type
  • Overall height: 65-1/2"
  • Spindle travel: 3-1/4"
  • Number of speeds: 12
  • Drill chuck: 5/8"
  • Spindle taper: MT#3
  • Range of speeds: 140-3,050 RPM
  • Swing: 17"
  • Drilling capacity: 1" steel
  • Table: Precision ground cast iron
  • Table size: 14" dia.
Email or Call for Freight Cost.

At this time, Tools & More  is not authorized to sell Shop Fox equipment to customers in the following states - AK, CA, CT, HI, LA, MA, MD, MS, RI and TN.

(Shipping cost is to a business or residential address, with loading dock / Fork Lift or picked-up at freight terminal only. Freight is only curb side delivery, You must have way to remove from truck. There are fees for Lift Gate Service. Freight companies may have other fees that may apply ie; lift gate, limited access etc. See Shipping Policies for more information)
