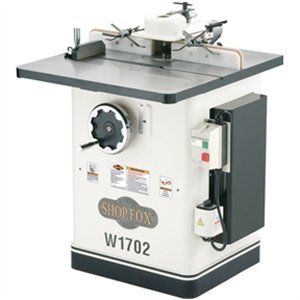

This full-capacity 3 HP Shaper will handle the smallest profile cutters all the way up to the largest panel cutters with its three spindle sizes, 3" spindle travel and 5-1/2" maximum spindle opening. Two reversible speeds also provide the greatest flexibility for arranging cutters of all sizes. So, no matter what the shaping application is, whether it's simple edge profiling or making door stiles, rails and panels, this is the right machine for the job.
SPECIFICATIONS:
*Motor: 3 HP, 220V, single-phase with reversing switch
*Spindles: 1/2", 3/4" and 1" (Included)
*Spindle travel: 3"
*Large precision ground cast-iron table
*Table size: 30-1/2" deep x 28-1/4" wide
*Magnetic switch with thermal overload protector
*Shielded and lubricated ball-bearings
*Floor-to-table height is 34"
*Spindle speeds: 7,000 & 10,000 RPM
*Spindle openings: 1-3/8", 2-3/4", 4" & 5-1/2"
*Approx. shipping weight: 353 lbs.
FEATURES:
*Large handwheel elevates the spindle for precise control and spindle lock knob ensures consistent results
*Heavy, cast-iron assembly adjusts both independently for full edge profiling, and for incremental cutting of very large profiles
*Starting pins allow irregular shaping
*Powder-coated paint
*Magnetic switch with thermal overload protects the operator and machine
*Interchangeable spindles are easily installed
*Removable table inserts provide work support close to the cutter
*Built-in 3" dust port
*Material hold-downs
*HDPE fence facings
(Shipping cost is to a business address, with loading dock / Fork Lift or picked-up at freight terminal only. Freight companies Do Not consider businesses run from a residential/farm address as a business. Residential fees will apply.)
SHIPPING COST:
Email or Call for Shipping Cost.
Optional 4" Long Spindle D3451
Optional Router Bit Spindle (Fits 1/4" & 1/2" Bits) D3392
