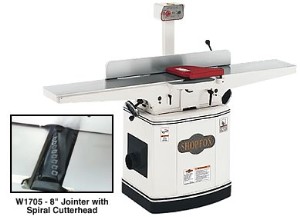

Shop Fox W1705 Jointer 8" Spiral Cutterhead
|
List Price: $1,440.00
Your Price: $1,050.00
Part Number: W1705
Manufacturer: Shop Fox
Manufacturer Part No: W1705
Freight Cost will be added to order. We will email with the Freight Cost.
|
| Shop Fox W1705 Jointer 8" Spiral
|
*******Close Out Special*******
Limited Inventory, All Closeout sales are final.
This Shop Fox® 8" Jointer is high on everyone's wish list and offers rugged cast iron construction, large capacity for precision edges on long boards, magnetic switch and durable center-mounted, fully adjustable 90° to ±45° tilting fence. Other features include silky-smooth handwheel table adjustments, a safe and reliable pedestal mounted power switch, precision-ground cast iron table and super durable powder coated paint. The W1705 has a spiral cutterhead and indexable carbide inserts for ultra-smooth finishes.
- Precision-ground fence and table
- Center mounted fence
- 5" Handwheels
- Rabbeting ledge
- Dust chute
- Oversized welded steel stand
- Post mounted control switch
- Dual V-belt drive
- Shielded & lubricated ball bearings
- Magnetic w/thermal overload protection switch
- Motor: 2 HP, 220V, single-phase, TEFC capacitor start induction, 3,450 RPM
- Table size: 9-1/4" x 70", infeed length 34-1/4"
- Overall length: 70"
- Overall depth: 27-1/2"
- Height to table: 31-1/4"
- Foot print: 23-1/2" x 19"
- Cutterhead diameter: 3"
- Carbide inserts: 40 - 4 sided, indexable
- Rabbeting capacity: 1/2"
- Max. width of cut: 8"
- Cutterhead speed: 5,500 RPM
- Cuts per minute: 22,000
- Fence: 39-9/16" x 4-7/8"
- Fence tilt: 45° L, 90°, 45° R
(Shipping cost is to a business address, with loading dock / Fork Lift or picked-up at freight terminal only. Freight companies Do Not consider businesses run from a residential/farm address as a business. Residential fees will apply.).
SHIPPING COST: Email or Call for Shipping Cost.
Additional InformationOwners Manual |
