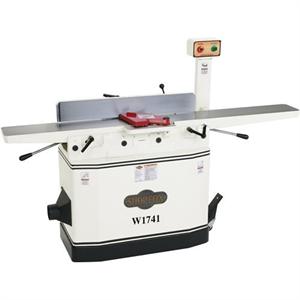

Shop Fox W1741 Jointer w/ Parallelogram Beds 8"

<< Previous in Stationary Next in Stationary >>
8" Jointer w/ Parallelogram Adj. Beds
8" Jointer w/ Parallelogram Adj. Beds
List Price: $1,465.00
Your Price: $1,172.00
Part Number: W1741
Manufacturer: Shop Fox
Manufacturer Part No: W1741
Availability: Available for Order
Freight Cost will be added to order. We will email with the Freight Cost.
Shop Fox W1741 Jointer w/ Parallelogram Beds 8"

Click Here for Special Pricing.

If you set out to design a full featured 8" Jointer, you couldn't do any better than this. We started with a 3 HP motor and a 4 knife cutterhead and added a precision parallelogram table adjustment mechanism, extra long in-feed table, large cast iron center mounted fence, pedestal mounted switch and a built-in locking mobile base. Check out the other features and you'll agree!

  • Motor: 3 HP, 220V, single-phase, TEFC, 3,450 RPM
  • Switch: magnetic w/thermal overload protection
  • Table size: 8" x 76-5/16"
  • Tables: parallelogram design, precision-ground cast iron
  • In-feed table size: 8" x 43-3/8"
  • Deluxe cast iron fence size: 35"L x 1-1/4"W x 5"H
  • Cutterhead diameter: 3-3/16"
  • Cutterhead knives: 4 (HSS) 8" x 3/4" x 1/8"
  • Cuts per minute: 21,400
  • Cutterhead speed: 5,350 RPM
  • Max. depth of cut: 1/8"
  • Max. rabbeting depth: 5/8"
  • Max. width of cut: 8"
  • Shielded & lubricated bearings
  • Precision ground cast iron tables
  • Fully adjustable tables
  • Single V-belt drive
  • Easy access lever adjusted tables with height gauge
  • Heavy-duty center mounted fence with angle gauge
  • Built-in dust chute with 4" port
  • Powder coated paint

 ManualSpecificationsParts List

Email or Call for Freight Cost.

At this time, Tools & More  is not authorized to sell Shop Fox equipment to customers in the following states - AK, CA, CT, HI, LA, MA, MD, MS, RI and TN.

(Shipping cost is to a business or residential address, with loading dock / Fork Lift or picked-up at freight terminal only. Freight is only curb side delivery, You must have way to remove from truck. There are fees for Lift Gate Service. Freight companies may have other fees that may apply ie; lift gate, limited access etc. See Shipping Policies for more information)
