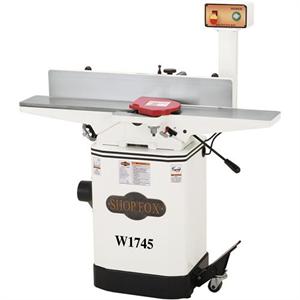

Shop Fox W1745 Jointer 6" w/ Mobile Base

<< Previous in Stationary Next in Stationary >>

List Price: $850.00
Your Price: $680.00
Part Number: W1745
Manufacturer: Shop Fox
Manufacturer Part No: W1745
Availability: Available for Order
Freight Cost will be added to order. We will email with the Freight Cost.
Shop Fox W1745 6" Jointer w/ Mobile Base

Click Here for Special Pricing.

Description:
The over-sized fence on this 6" Jointer provides tremendous control for edge jointing wider boards. The fine adjust hand wheel dials in the out-feed table relative to the cutterhead top dead center and the lever adjusted in-feed table provides quick and accurate in-feed table movement. Top it all off with a built-in mobile base, and you've got a jointer that has it all!

Specifications:
  • Motor: 1 HP, 110V, single-phase
  • Maximum stock width: 6"
  • Maximum depth of cut: 1/8"
  • Maximum rabbeting capacity: 1/2"
  • Cutterhead diameter: 2-1/2"
  • Knives: 3 (HSS) 6" x 5/8" x 1/8"
  • Cutterhead speed: 4,800 RPM
  • Table size: 6" x 46"
  • Table height from floor: 32-1/2"
  • Cuts per minute: 14,400
  • Fence size: 5"H x 35"L
  • Fence adjustment: positive stops @ ± 45 degrees & 90 degrees
  • Overall dimensions: 46" L x 27-1/2" W x 37-1/4" H



Email or Call for Freight Cost.
352-754-9335

At this time, Tools & More  is not authorized to sell Shop Fox equipment to customers in the following states - AK, CA, CT, HI, LA, MA, MD, MS, RI and TN.

(Shipping cost is to a business or residential address, with loading dock / Fork Lift or picked-up at freight terminal only. Freight is only curb side delivery, You must have way to remove from truck. There are fees for Lift Gate Service. Freight companies may have other fees that may apply ie; lift gate, limited access etc. See Shipping Policies for more information)
