Shop Fox W1754S 20" Planer w/ Spiral Cutterhead

<< Previous in Stationary Next in Stationary >>

List Price: $4,425.00
Your Price: $3,318.75
Part Number: W1754S
Manufacturer: Shop Fox
Manufacturer Part No: W1754S
Availability: Available for Order
Freight Cost will be added to order. We will email with the Freight Cost.

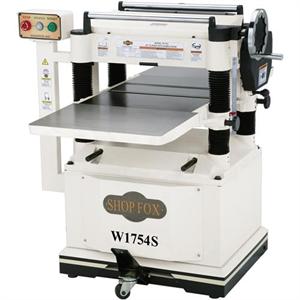

Shop Fox W1754S 20" Planer w/ Spiral Cutterhead

Click Here for Special Pricing.

Description:
With its built-in locking mobile base and pedestal-mounted switch, our Model W1754S spiral cutterhead planer is easy to move and operate. Just press down on the lock lever with your foot and this planer is mobile. Standard features: A 55-5/8" long precision-ground cast iron table with the cast iron extension wings, two feed speeds, return rollers, a 20" x 8" capacity, adjustable bed rollers, magnetic switch with thermal overload protection, and a 5 HP motor.

Specifications:
  • Motor: 5 HP, 220V, single-phase
  • Maximum cutting width: 20"
  • Maximum cutting height: 8"
  • Minimum stock thickness: 3/16"
  • Minimum stock length: 8"
  • Maximum cutting depth: 1/8"
  • Feed rate: 16 FPM & 20 FPM
  • Cutterhead type: Spiral with German-made index-able carbide inserts
  • Cutterhead diameter: 3-1/8"
  • Cutterhead speed: 5000 RPM
  • Table size including wings: 55-1/2"L x 21-1/2"W x 1-3/4"T
  • Overall dimensions: 55-1/2"L x 43-1/2"W x 45-7/8"H
  • Four column support with table locks
  • Pedestal mounted magnetic safety switch w/ thermal protection
  • Built-in mobile base
  • Precision ground cast iron extension wings
  • Weight 935lbs.



Email or Call for Freight Cost.
352-754-9335

At this time, Tools & More  is not authorized to sell Shop Fox equipment to customers in the following states - AK, CA, CT, HI, LA, MA, MD, MS, RI and TN.

(Shipping cost is to a business or residential address, with loading dock / Fork Lift or picked-up at freight terminal only. Freight is only curb side delivery, You must have way to remove from truck. There are fees for Lift Gate Service. Freight companies may have other fees that may apply ie; lift gate, limited access etc. See Shipping Policies for more information)
