Shop Fox W1758 Wood Lathe 16" x 43"

<< Previous in Wood Turning Lathes Next in Wood Turning Lathes >>

List Price: $910.00
Your Price: $732.00
Part Number: W1758
Manufacturer: Shop Fox
Manufacturer Part No: W1758
Availability: Available for Order
Freight Cost will be added to order. We will email with the Freight Cost.

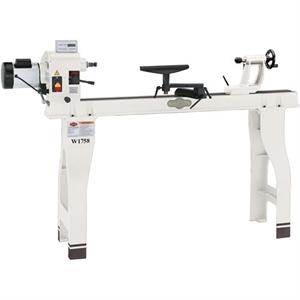

Shop Fox W1758 Wood Lathe 16" x 43"

Click Here for Special Pricing.

Description:
Here it is! Our fully featured and powerful wood lathe at a competitive price! Featuring a hefty 2 HP motor, ten speeds, a swivel-head for outboard turning, a digital tachometer for exact spindle speed, precision ground cast iron bed, headstock and tail-stock quick locks, and heavy cast iron legs for stability, this beauty will handle it all!

Specifications:
  • Motor: 2 HP, 110V, single-phase
  • Swing over bed: 16"
  • Maximum distance between centers: 46"
  • 1" x 8 TPI RH headstock spindle
  • MT#2 spindle & tail-stock tapers
  • Spindle bore: 3/8"
  • 10 speeds: 600 - 2400 RPM
  • 0°, 60°, 90°, 120° and 180° headstock rotation
  • Overall dimensions: 76-1/2"L x 19"W x 48-3/4"H
  • Heavy-duty, precision ground cast iron bed and cast iron legs ensure stability and minimal vibration
  • Spindle tachometer with digital readout
  • Standard tool rest extension
  • Quick lock/release levers for tail-stock & headstock
  • Includes: 6" faceplate, MT#2 spur center, MT#2 live center and tool rest w/ swivel arm base
  • Weight 294lbs.



Optional Accessories:
D1089 4-Jaw Chuck
D1090 3-Jaw Chuck

Email or Call for Freight Cost.
352-754-9335

At this time, Tools & More  is not authorized to sell Shop Fox equipment to customers in the following states - AK, CA, CT, HI, LA, MA, MD, MS, RI and TN.

(Shipping cost is to a business or residential address, with loading dock / Fork Lift or picked-up at freight terminal only. Freight is only curb side delivery, You must have way to remove from truck. There are fees for Lift Gate Service. Freight companies may have other fees that may apply ie; lift gate, limited access etc. See Shipping Policies for more information)
