Shop Fox W1763 Shaper 2-1/2 HP

<< Previous in Shapers Next in Shapers >>

List Price: $1,415.00
Your Price: $1,132.00
Part Number: W1763
Manufacturer: Shop Fox
Manufacturer Part No: W1763
Availability: Available for Order
Freight Cost will be added to order. We will email with the Freight Cost.

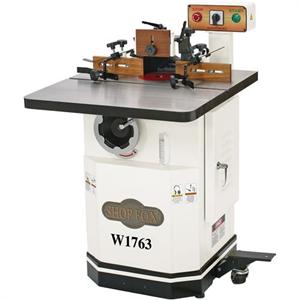

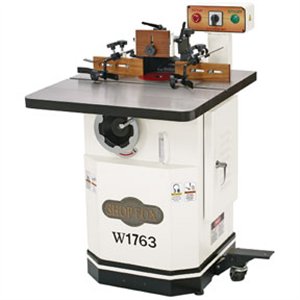

Shop Fox W1763 2-1/2 HP Wood Shaper w/ Mobile Base

Click Here for Special Pricing.

Description:
Our affordable heavy-duty 2-1/2 HP shaper with all of the features of its bigger brothers and more: Built-in mobile base, precise spindle elevation gauge, ratcheting fence locks with independent left and right micro-adjustment, precision ground cast iron table, fully adjustable cutter guard, easy-to-change 2-speed belt drive, and convenient pedestal controls.

Specifications:
  • Motor: 2-1/2 HP, 220V, 9.5A, single-phase
  • Large precision ground cast iron table
  • Table size: 28" x 30"
  • Spindles: 1/2" & 3/4"(Included)
  • Router bit collets: 1/4" & 1/2"(Included)
  • Spindle travel: 3"
  • Spindle speeds: 7,000 & 10,000 RPM
  • Spindle openings: 3", 3-1/2" & 6-3/4"
  • Magnetic switch w/ thermal overload protector
  • Shielded & lubricated ball bearings
  • Powder coated paint
  • Built-in 4" dust port
  • Split adjustment fence
  • Pedestal switch
  • Integrated mobile base
  • Weight 494lbs.


Email or Call for Freight Cost.
352-754-9335

At this time, Tools & More  is not authorized to sell Shop Fox equipment to customers in the following states - AK, CA, CT, HI, LA, MA, MD, MS, RI and TN.

(Shipping cost is to a business or residential address, with loading dock / Fork Lift or picked-up at freight terminal only. Freight is only curb side delivery, You must have way to remove from truck. There are fees for Lift Gate Service. Freight companies may have other fees that may apply ie; lift gate, limited access etc. See Shipping Policies for more information)
