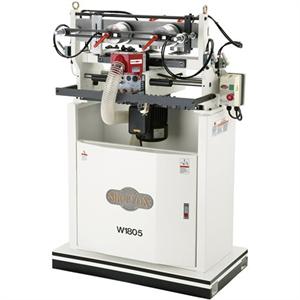

Shop Fox W1805 Dovetail Machine 16-1/2"

Click Here for Special Pricing.

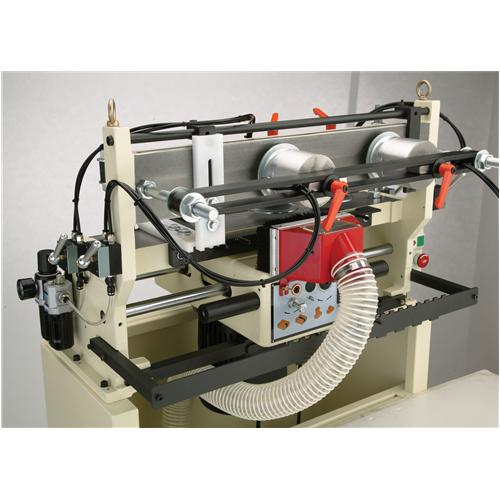

This model is the luxury version of our W1804 11" Dovetail Machine. Instead of cam-lock clamps this machine features pneumatic clamps that are faster and easier to use, a larger workpiece capacity, and magnetic switch control. Also, the motor is inverted so vertical workpieces are inserted/removed from above rather than below, which makes it easier and more ergonomic to operate.

  • Motor: 1 HP, 110V/220V,single-phase, prewired 220V
  • Table size: 24" x 7-3/4"
  • Floor to table height: 46-7/16"
  • Overall size: 38"W x 28"D x 57"H
  • Number of spindles: 1
  • Spindle speed: 18,500 RPM
  • Dovetail bit: 10° angle x 5/8" long
  • Dovetail templates: 1", 1-1/2", 2"& 2-1/2"
  • Dovetail shank: 12mm
  • Maximum dovetail height: 3/4"
  • Minimum dovetail height: 3/16"
  • Maximum thickness: 2-3/8"
  • Minimum thickness: 13/32"
  • Maximum stock size:16-1/2"W x 59"L
  • Minimum stock size: 2-3/8"W x 7-7/8"L
  • 4" and 2-1/2" dust ports
  • Precision milled cast iron table frame
  • Cast aluminum carriage
  • Steel stand
  • Hardened and ground chrome steel slide ways
  • Ball bearing linear guides
  • Four-sided dovetail template bar
  • Micro adjustable spindle head
  • Workpiece stops

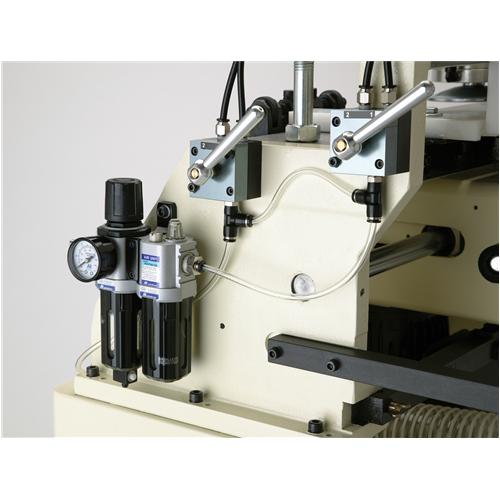

  • Quick air cylinder clamp, air filter/regulator/lubricator with pressure gauge
  • Spring loaded carriage for smooth operation
  • Magnetic switch with thermal overload protection
  • Weight 539lbs.

Optional Accessories:
D3696 Replacement Dovetail Bit

Email or Call for Freight Cost.

At this time, Tools & More  is not authorized to sell Shop Fox equipment to customers in the following states - AK, CA, CT, HI, LA, MA, MD, MS, RI and TN.

(Shipping cost is to a business or residential address, with loading dock / Fork Lift or picked-up at freight terminal only. Freight is only curb side delivery, You must have way to remove from truck. There are fees for Lift Gate Service. Freight companies may have other fees that may apply ie; lift gate, limited access etc. See Shipping Policies for more information)
