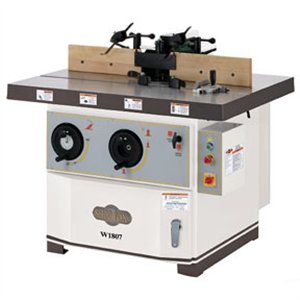

Shop Fox W1807 Shaper 7-1/2 Hp
|
List Price: $4,992.00
Your Price: $3,993.33
Part Number: W1807
Manufacturer: Shop Fox
Manufacturer Part No: W1807
Freight Cost will be added to order. We will email with the Freight Cost.
|
| Shop Fox W1807 Shaper 7-1/2 Hp
|
Email or Call for Special Pricing.
352-754-9335
This heavy-duty 7-1/2 HP tilting arbor shaper has got it all: A -5° to 45° spindle tilt with exact dial indicator, precision-ground cast iron table with vertical and horizontal hold-downs, split micro-adjustable fence, a huge sealed dust removal chamber below the table with a separate dust hood and port above the cutter, quick and easy 4-speed change system, and a large 10" cutter capacity. Dependability to run all day long is built into our W1807 Shaper from the ground up. Extras include a 3-piece table insert, heavy-duty miter gauge, and 7 spindle spacers.
- Micro adjustable fence
- Precise dial scale indicated spindle tilt
- Front mounted spindle lock
- Four spindle speeds
- 47-1/4" x 35-1/2" precision-ground cast iron table
- 1-1/4" X 7" spindle
- -5° to +45° spindle tilt
- Magnetic switch w/ thermal overload protection
- Convenient spindle lock
- Easy access for speed changes
- Dial angle scale for spindle tilt
- Includes heavy-duty miter gauge, spindle spacers and nuts, hold-down assemblies and table inserts
- Motor: 7-1/2 HP, 220V/440V*, three-phase, 3,450 RPM, 20/10 Amps
- Spindle travel: 6-5/8"
- Spindle tilt: -5 to +45°
- Spindle size: 1-1/4"
- Spindle capacity: 6"
- Spindle length: 7"
- Spindle openings: 2-3/4", 3-7/8", 6", 9-7/8" & 13-3/4"
- Spindle speeds: 3900, 5000, 7200 & 9400 RPM
- Maximum cutter diameter: 10"
- Table counterbore: 13-3/4"
- Precision-ground cast iron table size: 47-1/4" x 35-1/2" x 3"
- Floor to table height: 34-1/4"
- Fence: cast iron, independently adjustable
- Switch: magnetic with thermal overload protection
- Dust Ports: (2) 5" ports
- *440V operation requires the purchase of additional components
(Shipping cost is to a business address, with loading dock / Fork Lift or picked-up at freight terminal only. Freight companies Do Not consider businesses run from a residential/farm address as a business. Residential fees will apply.).
SHIPPING COST: Email or Call for Shipping Cost
Lift Gate Service - add $
Residential Fee - add $
Additional InformationOwners Manual |
